1X2 1X4 1X8 1X16 1X32 1X64 ABS PLC Fiber Optic Splitter

Planar Lightwave Circuit Splitter (PLC Optical Splitter) is based on planar waveguide optical power distribution products, with low insertion loss and polarization dependent loss, small size, wide operating wavelength range, high channel uniformity and good characteristics, generally used in passive optical network (EPON, BPON, GPON, etc.) to realize the optical power splitting. Our PLC splitters are compliant with Telcordia GR-1209-CORE, Telcordia GR-1221-CORE and RoHS standards.

Product Specification

Item	Parametr
Product Type	1*2	1*4	1*8	1*16	1*32	1*64
Insertion Loss (dB)	3.8	7.8	11	14	17.5	21.5
Uniformity (dB)	0.5	0.5	0.5	1	1	1.5
Max. PDL (dB)	0.2
Max. TDL (dB)	0.5
Min. Return Loss (dB)	50
Min. Derectivity (dB)	55
Wavelength Dependent Loss (dB)	0.8
Operating Temperature (°C)	-40°C to +85°C
Storage Temperature (°C)	-40°C to +85°C
Operating Wavelength (nm)	1260-1650
Fiber Type	SMF-28e
In/Out Connector	FC/UPC, SC/UPC, LC/UPC etc

Product Features

1. Excellent Environmental Stability

2. Excellent Mechanical performance

3. Good uniformity and low insertion loss

4. Low insertion loss and low polarization dependent loss

5. Uniform power splitting, and good stability and reliability

6. The Large-scale manufacture ability with automatic packaging technology which leads the low-cost advantage

Application

●CATV System

●FTTX System

●LAN, Wan, Metro Network

●Digital, Hybrid and Am-Video Systems

Basic Info.

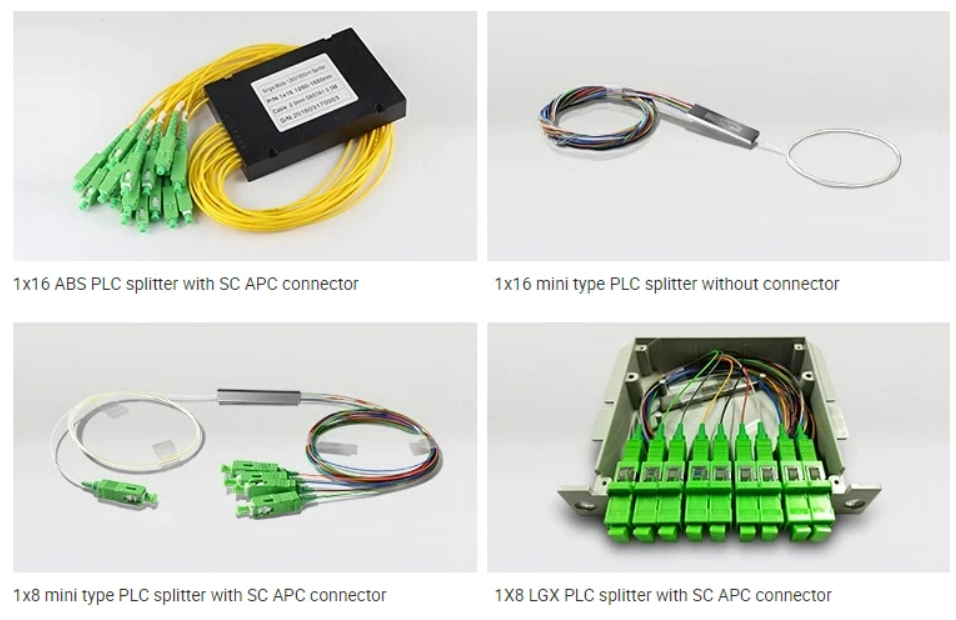

Model NO.	ABS PLC splitter	Connectors	Without Connector or Sc/LC/FC for Option
Length of Input Cable	0.5m/1m/1.5m or Customized	Length of Output Cable	0.5m/1m/1.5m or Customized
End-face of The Connector	UPC and APC for Option	Operating Wavelength	1260-1650nm
Return Loss	50-60dB	Package Type	Mini/ABS/Insertion Type/Rack Type for Option
Transport Package	Individual Box or According to Customer′s Request	Specification	RoHS, ISO9001
