PVC LSZH 2fo SM Monomode G657A FTTH Optical Fibre Drop Cable 2km 1km

Place of Origin	Guangdong, China
Brand Name	Glovion
Certification	ISO9001, RoHS
Model Number	GLO-FTTH-ID02
Minimum Order Quantity	Negotiation
Price	Negotiation
Packaging Details	wooden roll, wooden pallet
Delivery Time	3~5 days after get payment
Payment Terms	Western Union, T/T, L/C
Supply Ability	10,000km/ month

Multimode Single mode 2core 2 FRP Optica Fibra Flat 8 figure FTTH Drop Cable Anatel

Description:

- The FTTH Drop cable, as an important part of FTTH network, forms the final external link between the subscriber and the feeder cable.

- Choosing the right FTTH drop cable termination or interconnect solution will directly affect network reliability, operational flexibility and the economics of FTTH deployment.

- The FTTH drop cables are ideal to use for direct installation into the houses, suitable for being used in homes and offices.

- Flat FTTH drop cable, with a flat out-looking, usually consists of a polyethylene jacket, several fibers and two dielectric strength members to give high crush resistance.

- Fiber FTTH drop cable usually contains one or two fibers, so far the drop cables with fiber counts up to 4, 8, 12 or more are also available now.

- FTTH Drop Cables are good to use for fiber to the home last mile solution, it has small diameter and light weight, this makes it space-saving and easy to handle, the optical fiber cable is with special structure so it is easy to pull the fibers out from the cables.

Feature:

- Simple structure, light weight and high practicability

- Low smoke, zero halogen and flame retardant sheath

- Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
- Two parallel strength members ensure good performance of crush resistance to protect the fiber
- Novel flute design, easily strip and splice, simplify the installation and maintenance

Applications:

- LAN,

- WAN, ...

- CCTV, CATV, ...

- FTTX (FTTH, FTTA, FTTB, FTTC, FTTO, ..),

- Adopted to Outdoor distribution,

- Long distance and local area network communication,

- Used in access network or as access cable from outdoor to indoor in customer premises network,

- Suitable for aerial .pipeline laying method,

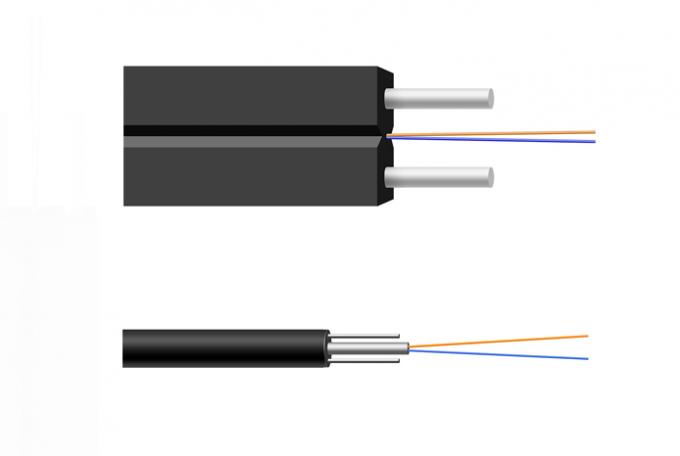

Constructions:

PVC LSZH 2fo SM Monomode G657A FTTH Optical Fibre Drop Cable 2km 1km 0

PVC LSZH 2fo SM Monomode G657A FTTH Optical Fibre Drop Cable 2km 1km 1

Parameter:

No. of fiber				2/4
Fiber Model				G.657A1
KFRP	Diameter(±0.03)mm			0.5
	NO.			2
Outer Sheath	Material			LSZH
	Colour			white/ black
Cable Diameter(±0.2)mm				2.0×3.0
Cable Wetght(±2)kg/km				8.50
Attenuation		1310nm	dB/km	0.50
		1550nm		0.40
Allowable Tensile Strength		Short Term	N	80
		Long Term		40
Allowable Crush Resistance		Short Term	N/100mm	2200
		Long Term		1000
Min. bending radius		Without Tension		15.0×Cable-φ
		Under Maximum Tension		30.0×Cable-φ
Temperature range(℃)		Installation		-20~+60
		Transport&Storage		-40~+70
		Operation		-40~+70

Packing:

PVC LSZH 2fo SM Monomode G657A FTTH Optical Fibre Drop Cable 2km 1km 2

Technical Data:


Fiber type				Outsheath material	Outsheath color	Length
Fiber Sort	Multimode	OM1	62.5/125	LSZH PVC	Black White Other color	100m 200m 300m 500m 1000m 2000m
		OM2	50/125
		OM3	50/125 10G
		OM4	50/125
		OM5	50/125
	Singlemode	G652D
		G655
		G657A1
		G657A2
		G657B3

Kocent Optec Limited FTTH Solution:

PVC LSZH 2fo SM Monomode G657A FTTH Optical Fibre Drop Cable 2km 1km 3

OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.

Shipping:
- International express: DHL, Fedex, TNT, UPS, etc
- Internatioal air: CA, AA, EA, etc
- By sea:
Standard export sea port: Shenzhen, Hongkong, Ningbo
Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
