SC/APC To SC/APC Simplex OS2 Single Mode Indoor Armored PVC 3.0mm Fiber Optic Patch Cable

OS2 9/125 Single Mode SC/APC to SC/APC Simplex Indoor Armored Fiber Optic Cable

Armored fiber optic cable with build-in metal armor can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with slight dust, oil, gas, moisture, or even damage-causing rodents and pests.

Product Specification

Connector Type	SC to SC	Polish Type	APC to APC
Fiber Mode	OS2 9/125μm	Fiber Count	Simplex
Fiber Grade	G.657.A1	Minimum Bend Radius	10D/5D (Dynamic/Static)
Cable Diameter	3.0mm	Cable Jacket	PVC(OFNR)/Plenum/LSZH
Cable Color	Blue/Orange/Aqua/Yellow/Black	Fiber Cords Structure	Single Armored, Stainless Steel Tube
Tensile Loads (Long Term)	120N	Tensile Loads (Short Term)	225N
Insertion Loss	≤0.3dB	Return Loss	≥60dB
Operating Temperature	-25~70°C	Storage Temperature	-25~70°C

Product Specification

Product Highlights

Tough Steel Tube Protects Network Connection Further

Stainless steel tube can provide good protection against optical fiber breakage and be used in a slight oil, gas and moisture environment, which ensure the operation of the network.

safa

dfsd

Meet the Various Indoor Installation Needs

Exceptional durability of armored fiber cables is suitable for network cabinet connection, ceiling channel wiring and under-floor wiring in data center.

Carrier-grade Cable with Guaranteed Quality

Superior cable assemblies reduce light loss during cable bending and easily meet your diverse cabling requirements.

safdas

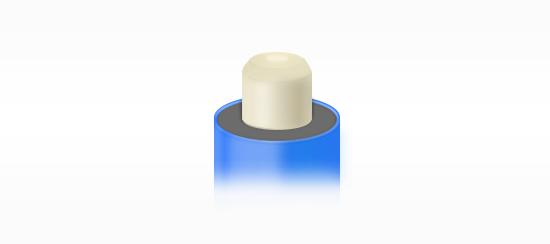

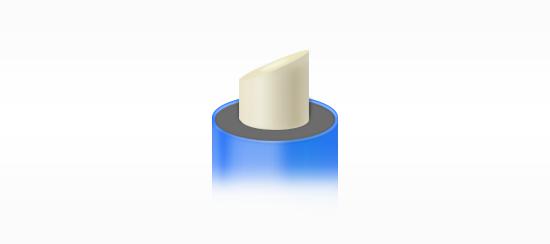

Two Polish Types for Various Signal Sensitivity Demands

The fiber endfaces of UPC and APC result in different signal losses. With an 8° angled endface, APC
is more suitable for high precision fiber optic signal applications.
